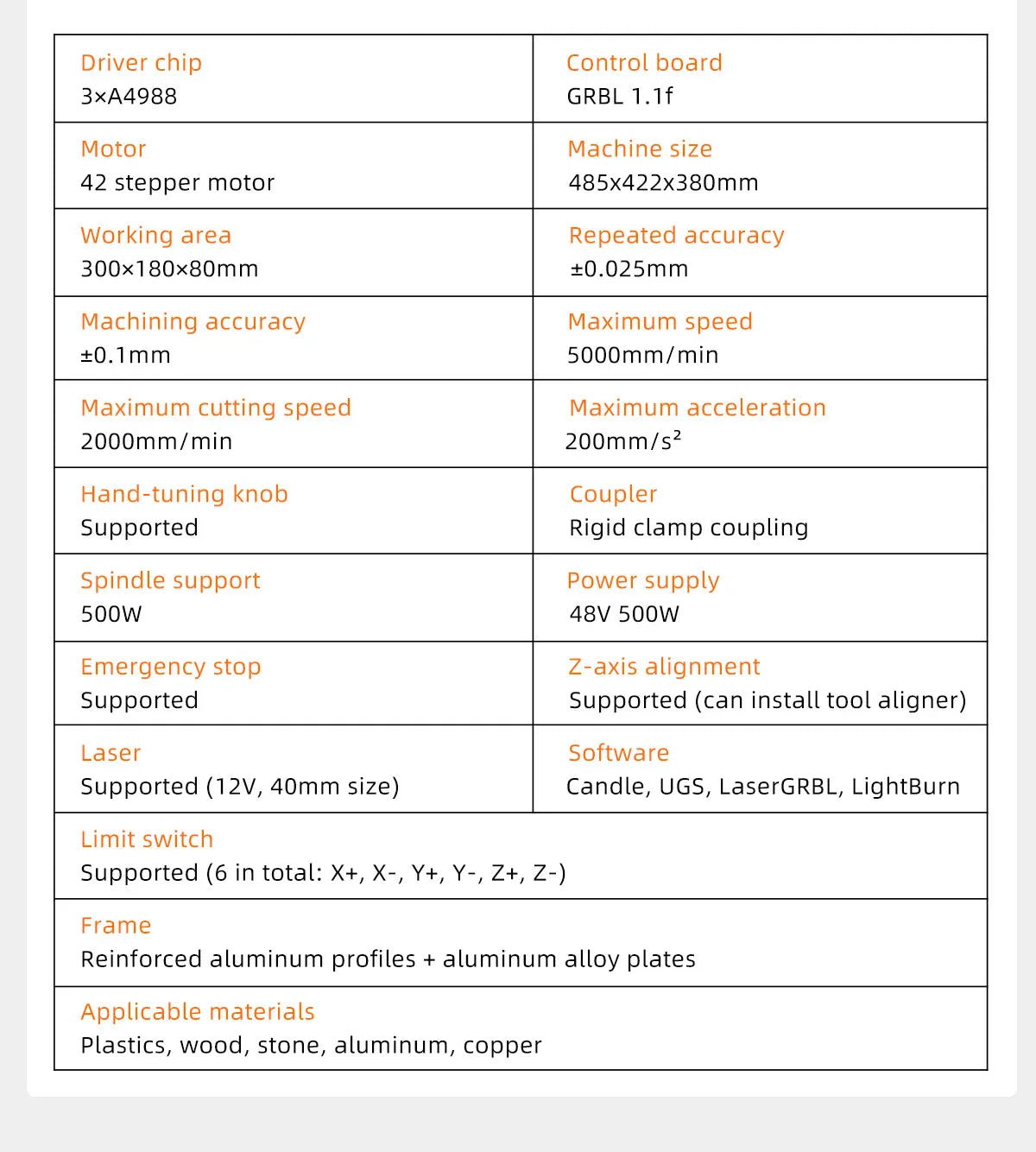

SPECIFICATIONS

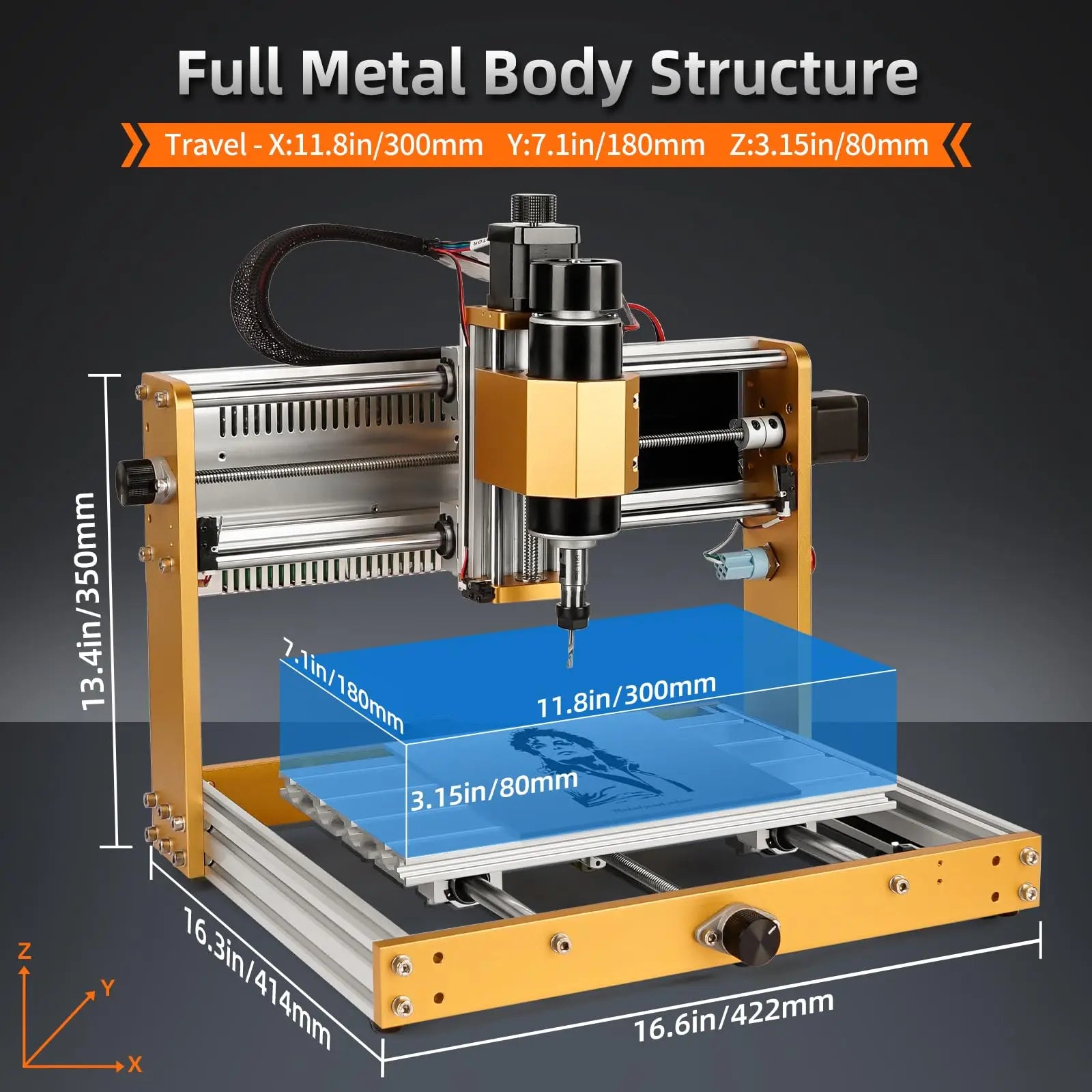

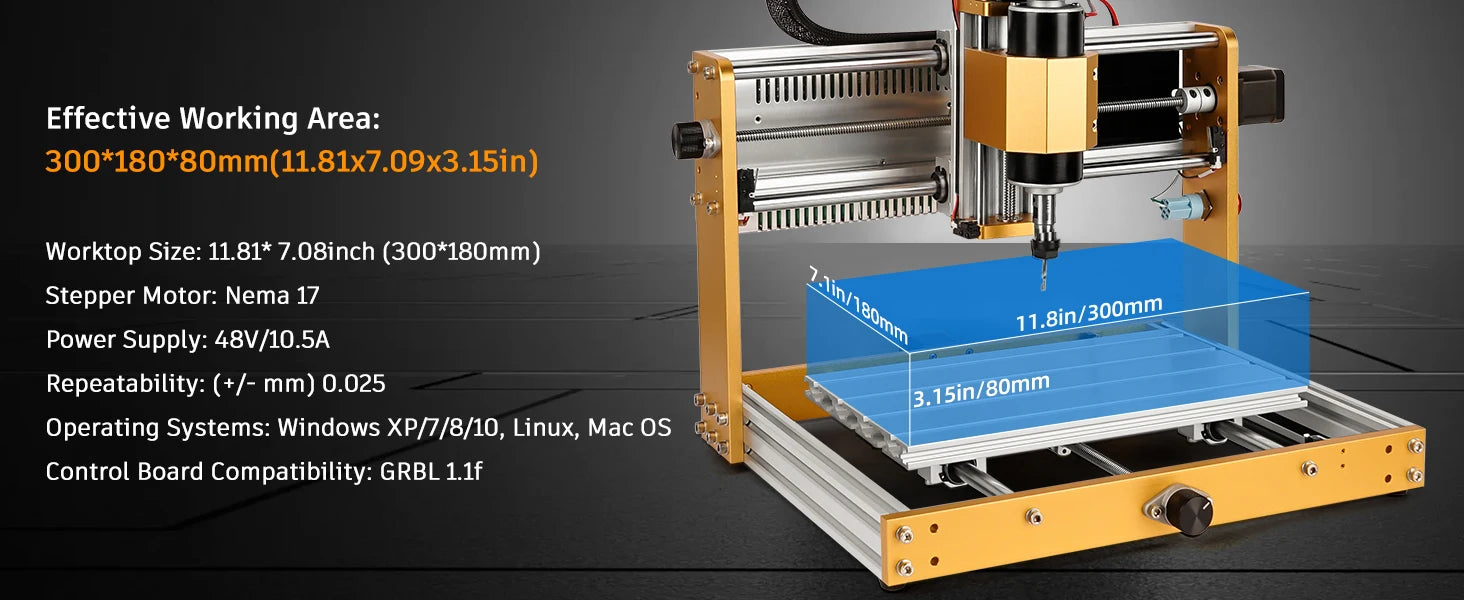

Active Working Area: 300x180x80mm

Brand Name: JEEL

CNC or Not: CNC

Certification: CE,RoHS

Condition: New

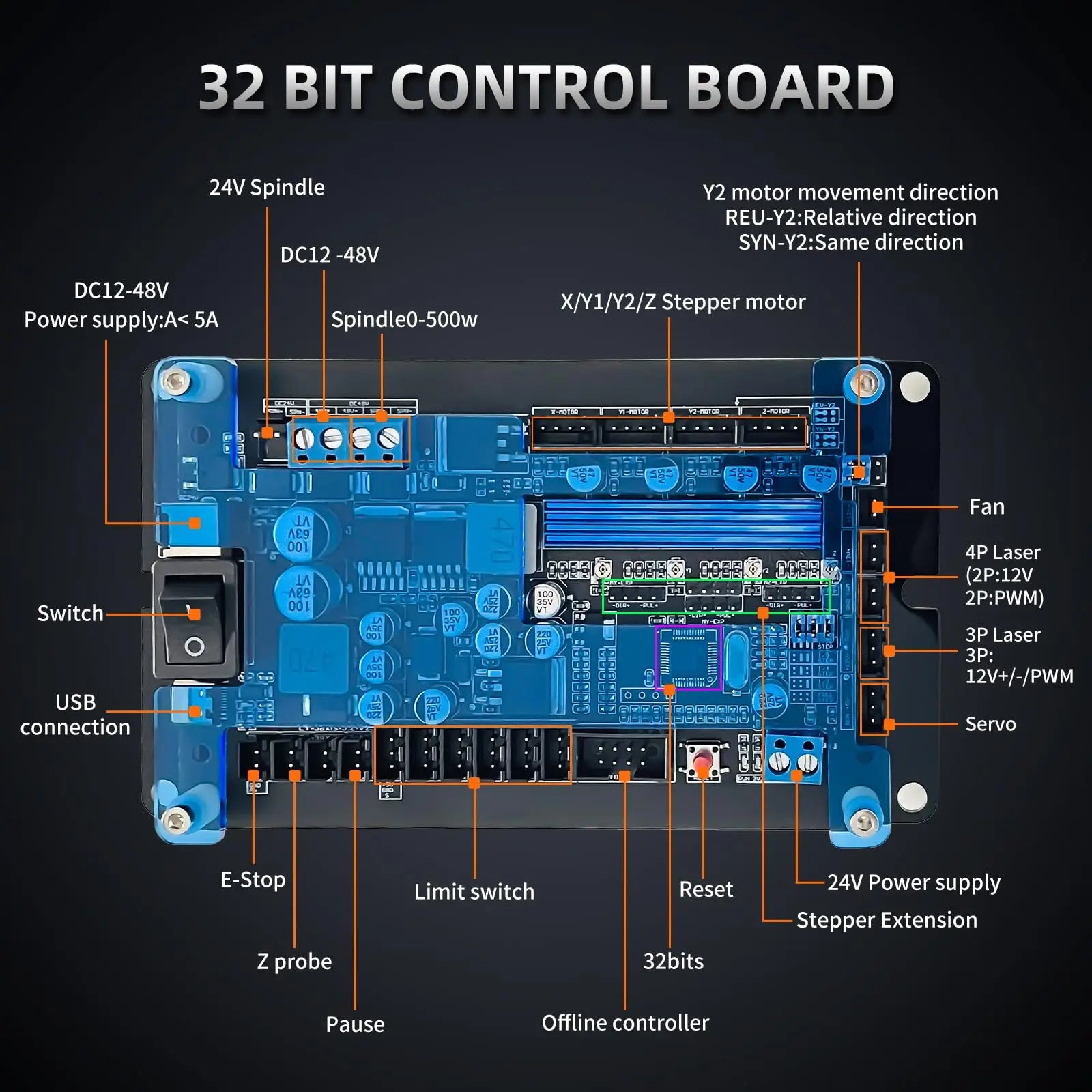

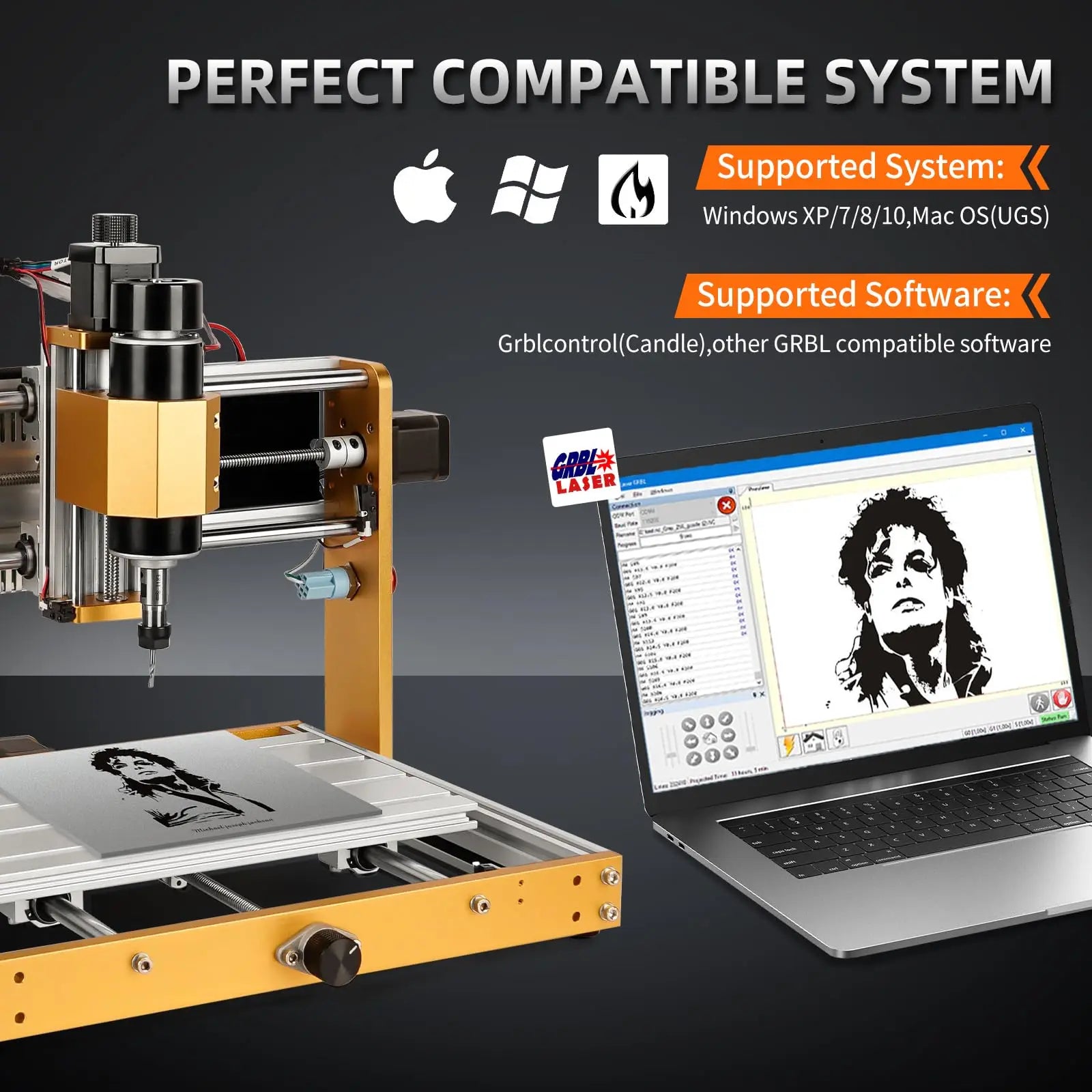

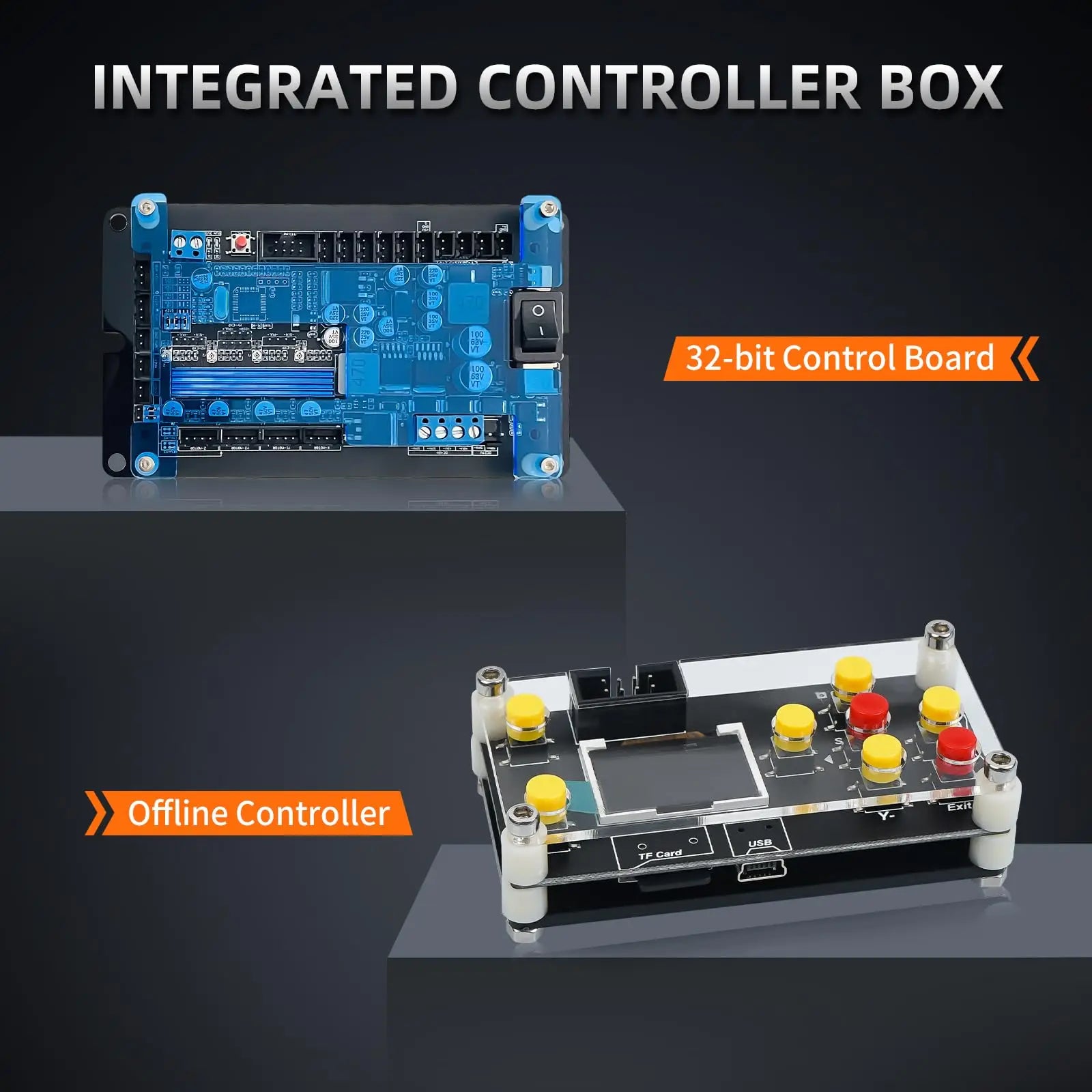

Controller: GRBL

Firmware Version: 1.1 F

Hign-concerned Chemical: None

Is Smart Device: YES

Material: Aluminum

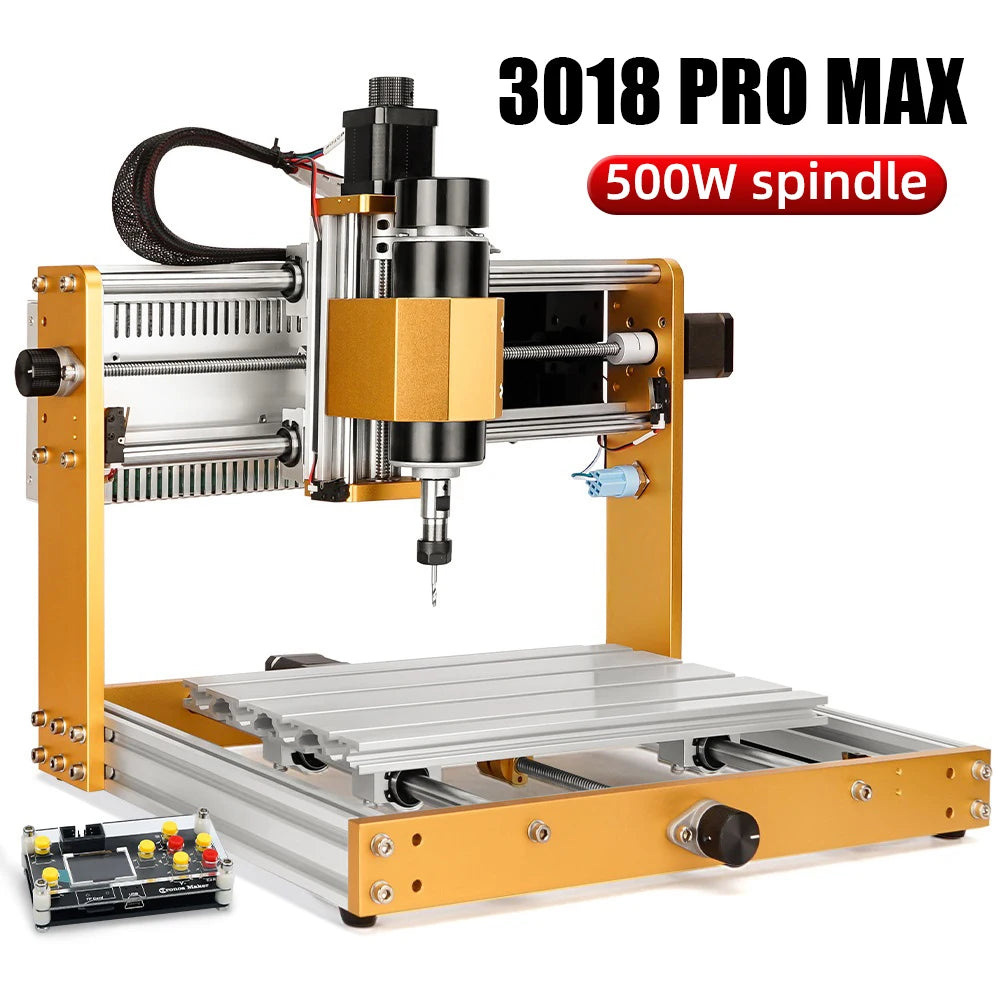

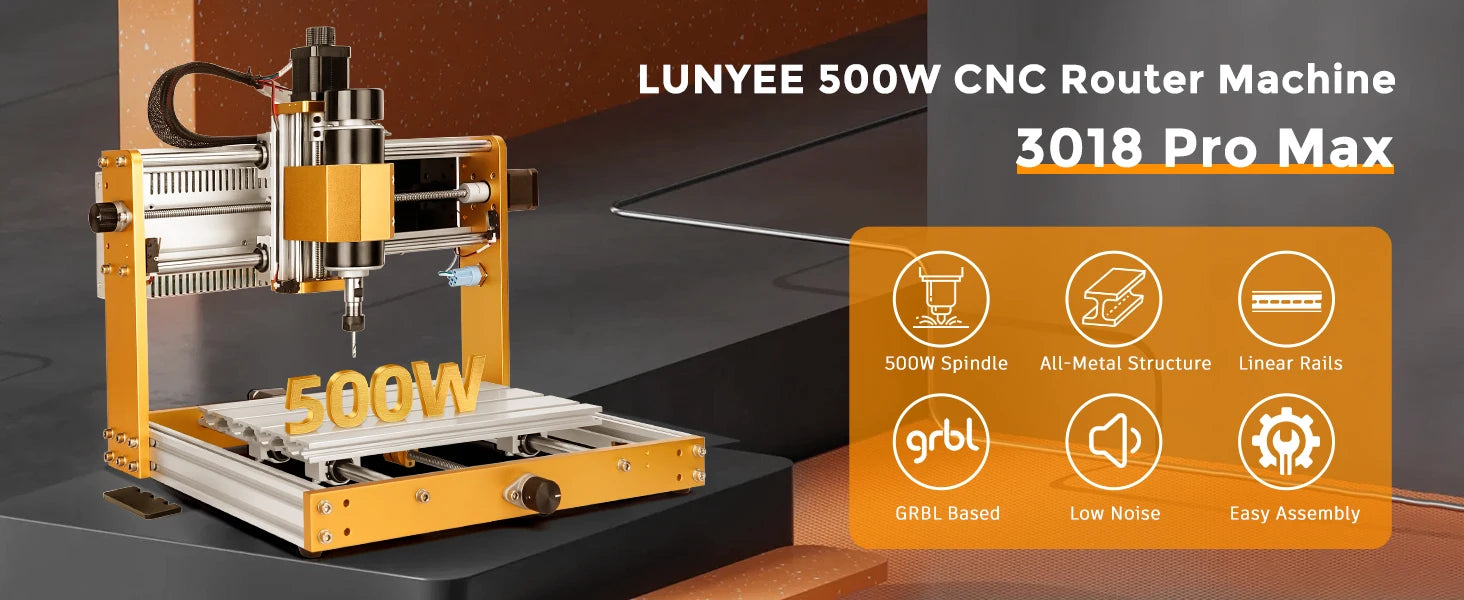

Model Number: CNC 3018 pro max

Origin: Mainland China

Power Supply: 48V 500W

Spindle Power: 500w

Spindle Speed: 12000 r/min

Purchase Guide:

This product is divided into Performance Version (2.0) and Professional Version (3.0). The spindle used with it. The control board and laser are the same.

The biggest difference is that the 2.0 version is a frame built with 2040 profiles, and the 3.0 version is upgraded to a combination of linear guides and 4040 profiles. 3.0 is an upgrade on the 2.0 version, with higher stability and engraving accuracy.

If you want to quickly learn about CNC machines, it is recommended to buy the 2.0 version. If you pursue higher precision, it is recommended to buy the 3.0 version. Please see the option pictures clearly before placing an order.

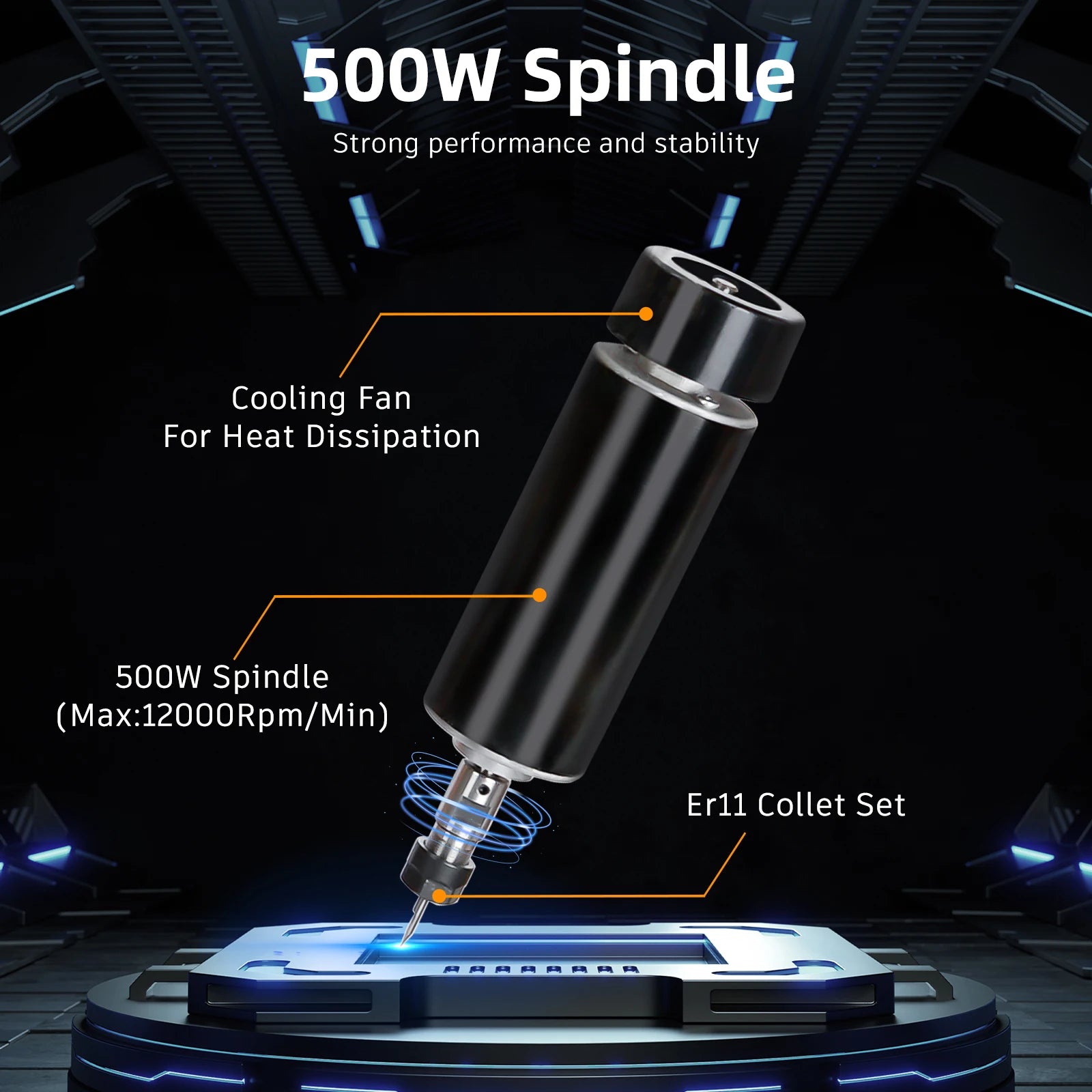

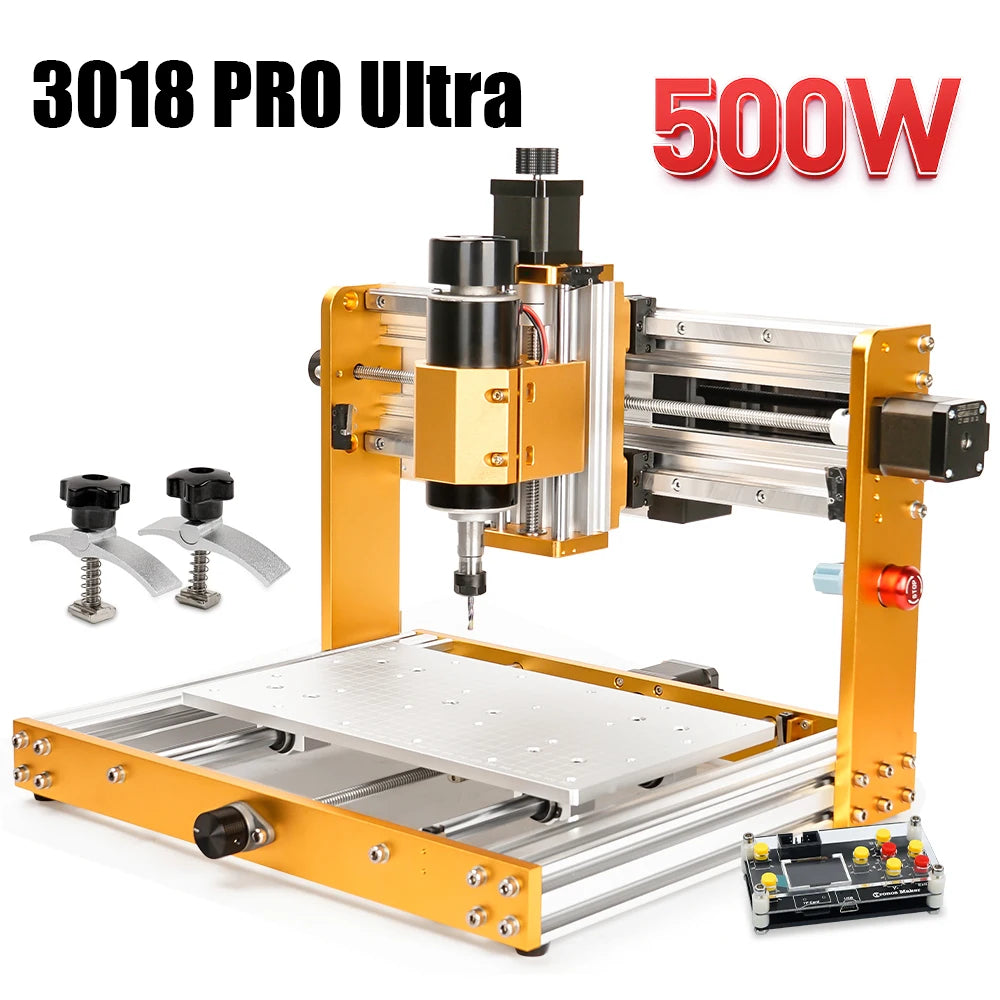

● Powerful 500W Spindle: High power output ensures consistent performance when cutting dense materials like aluminum and copper. Maximum movement speed reaches 5000mm/min, with spindle speed ranging from 0-12000RPM.

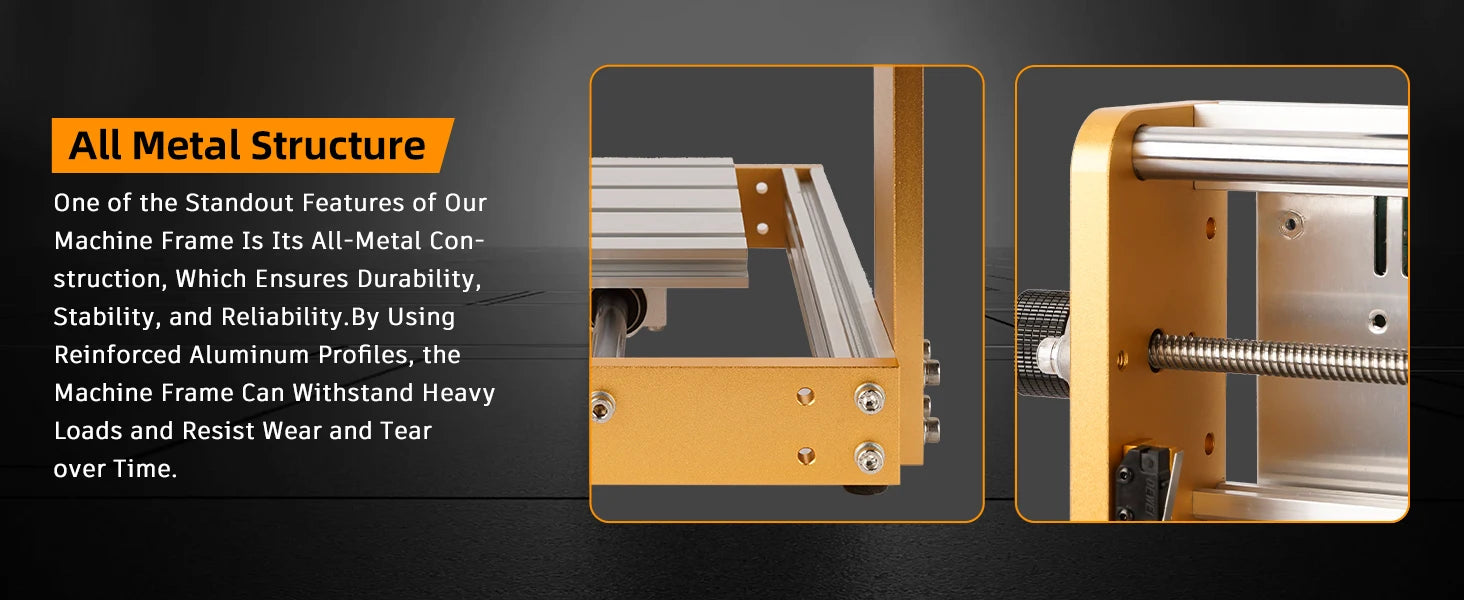

● All-Metal Construction: Durable and stable, made from reinforced aluminum profiles to withstand heavy loads. No plastic parts (except electrical components) maintain structural integrity in harsh conditions.

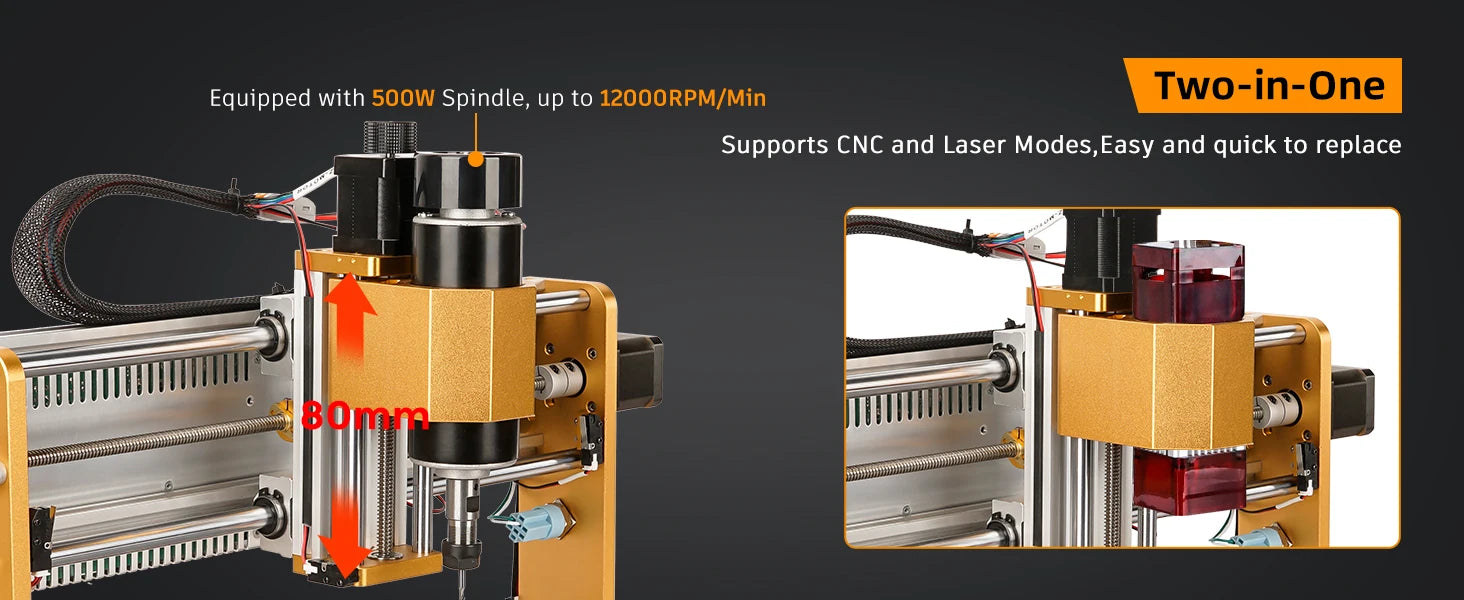

● Extra Long Z-Axis Travel: Features the longest Z-axis stroke (80mm) among standard models. Equipped with a 12mm optical axis for precise linear motion and accurate positioning. Upgrade kit for 12mm available separately.

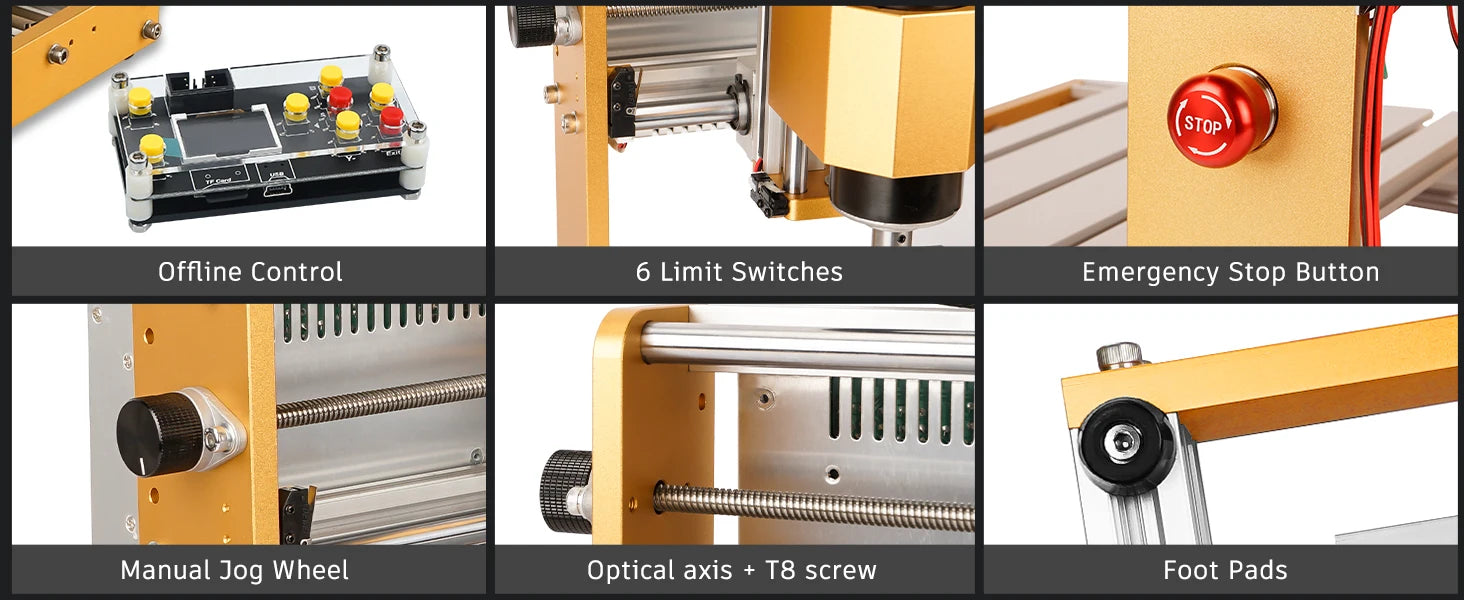

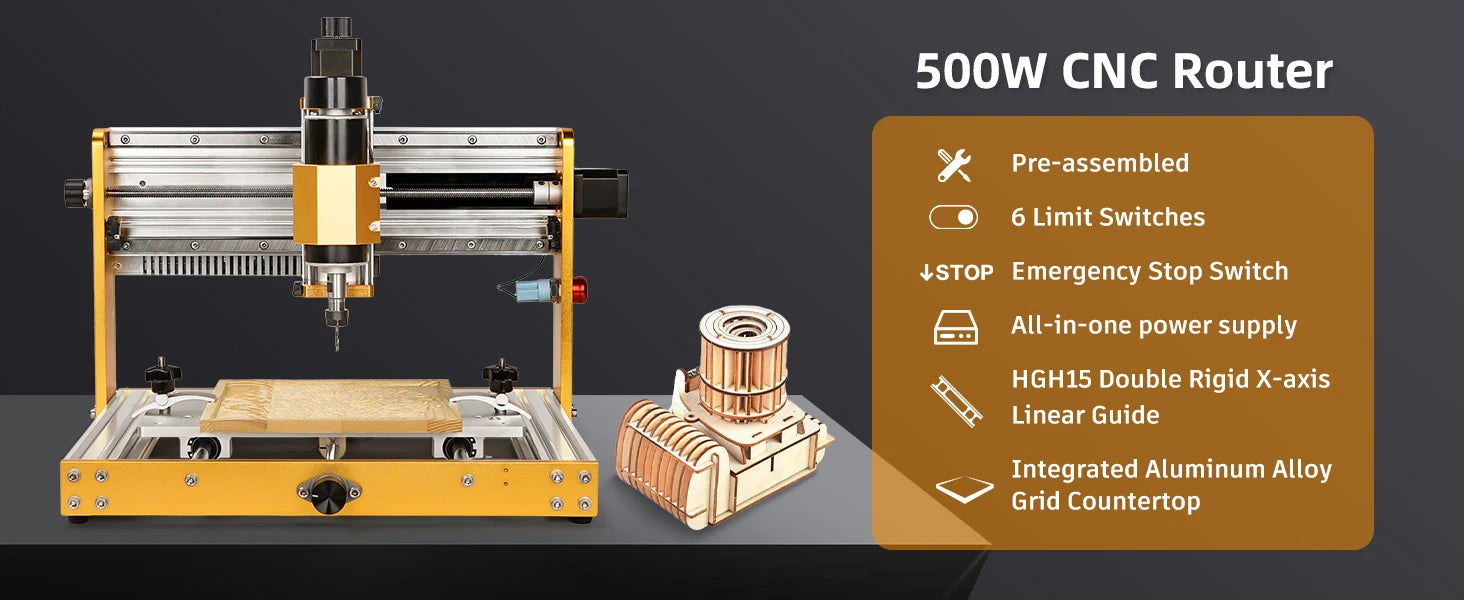

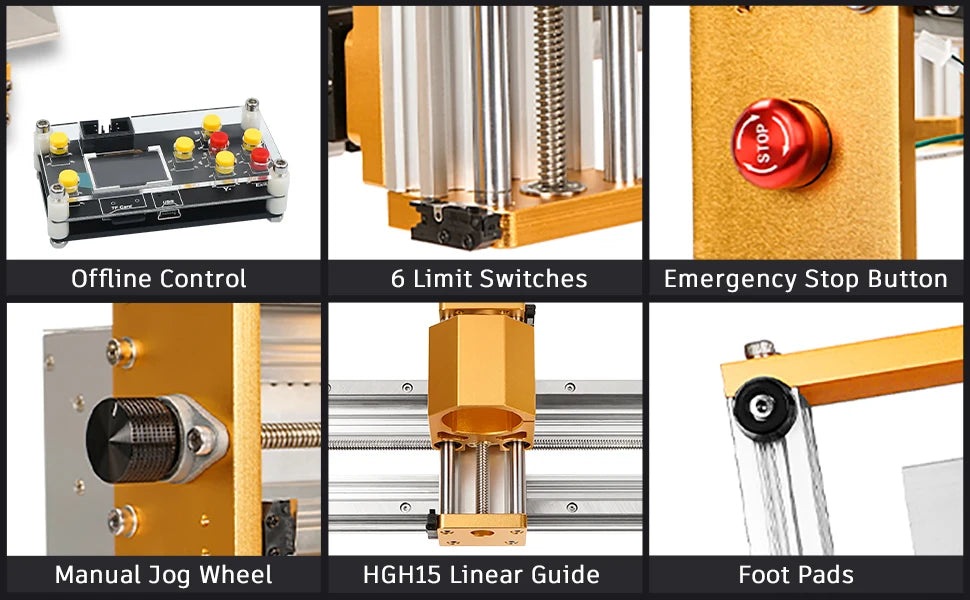

● Unparalleled Safety: Robust safety system with 6 limit switches and an emergency stop button ensures user safety. XYZ axis includes manual handwheels for seamless and accurate positioning.

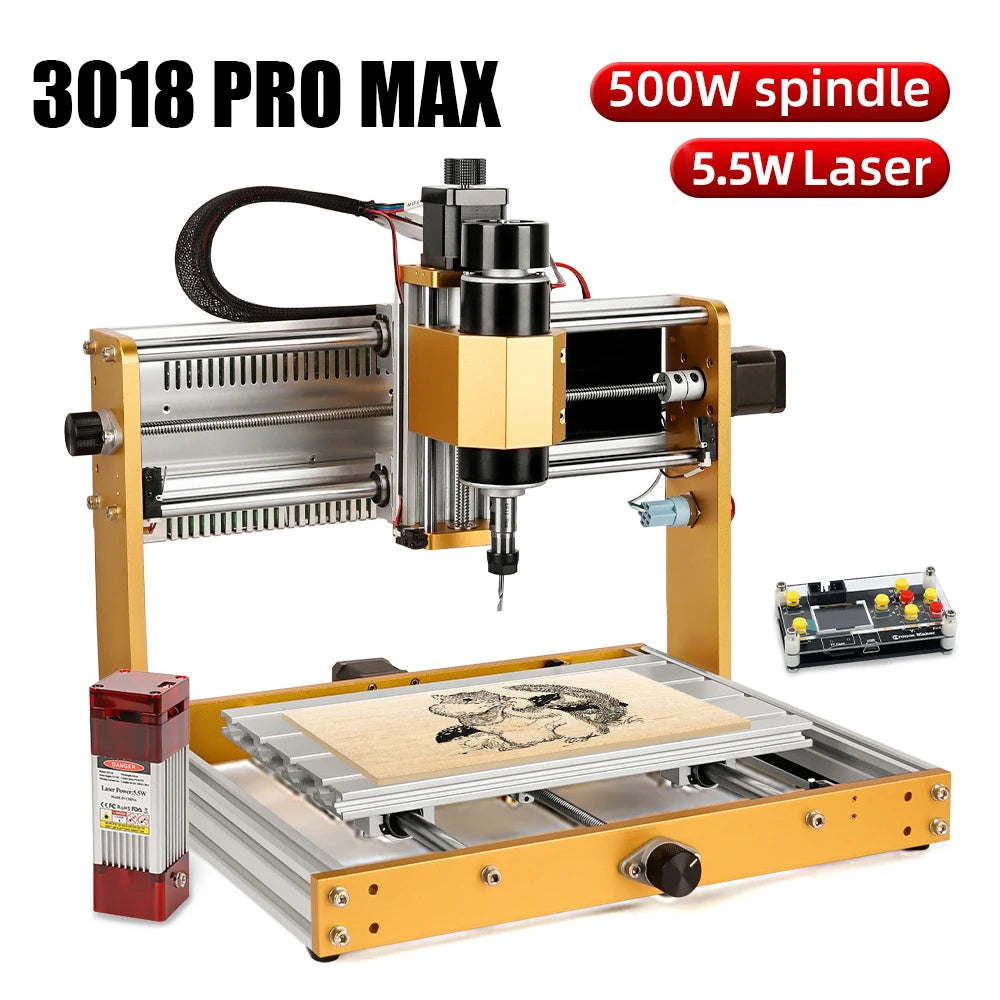

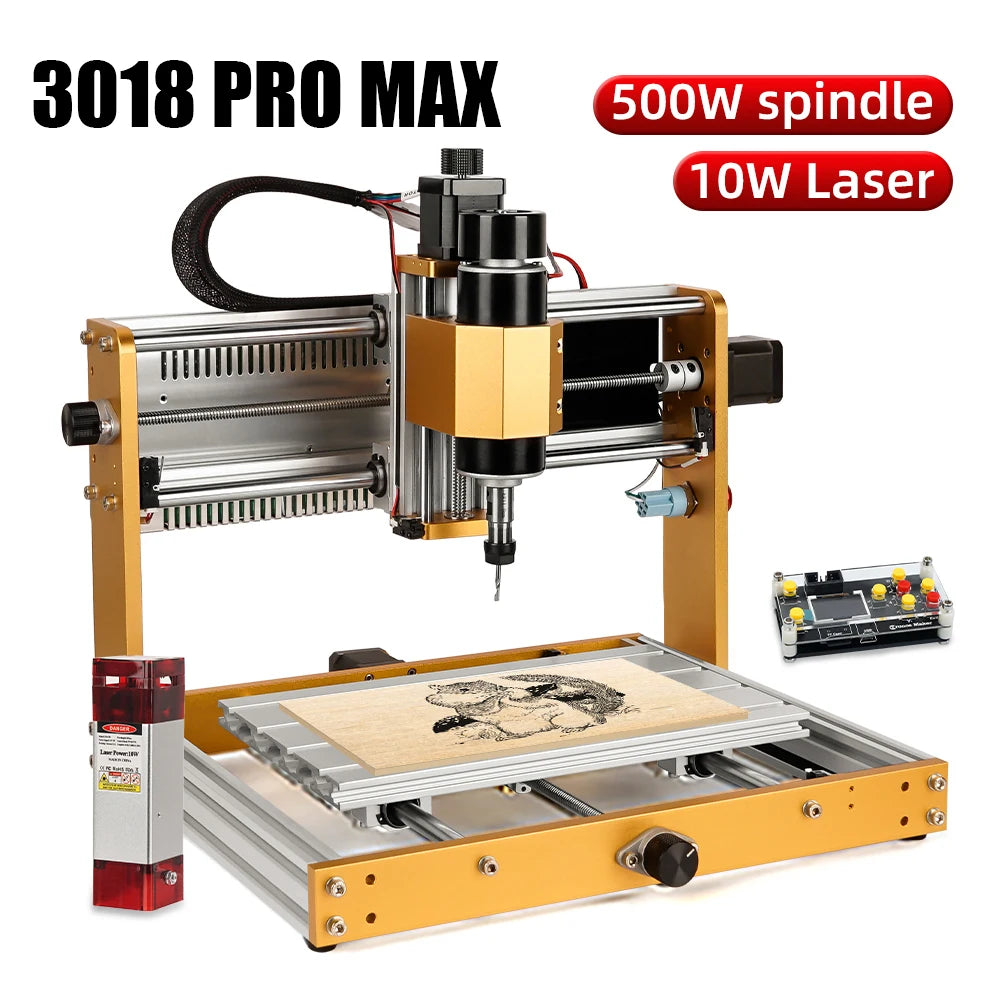

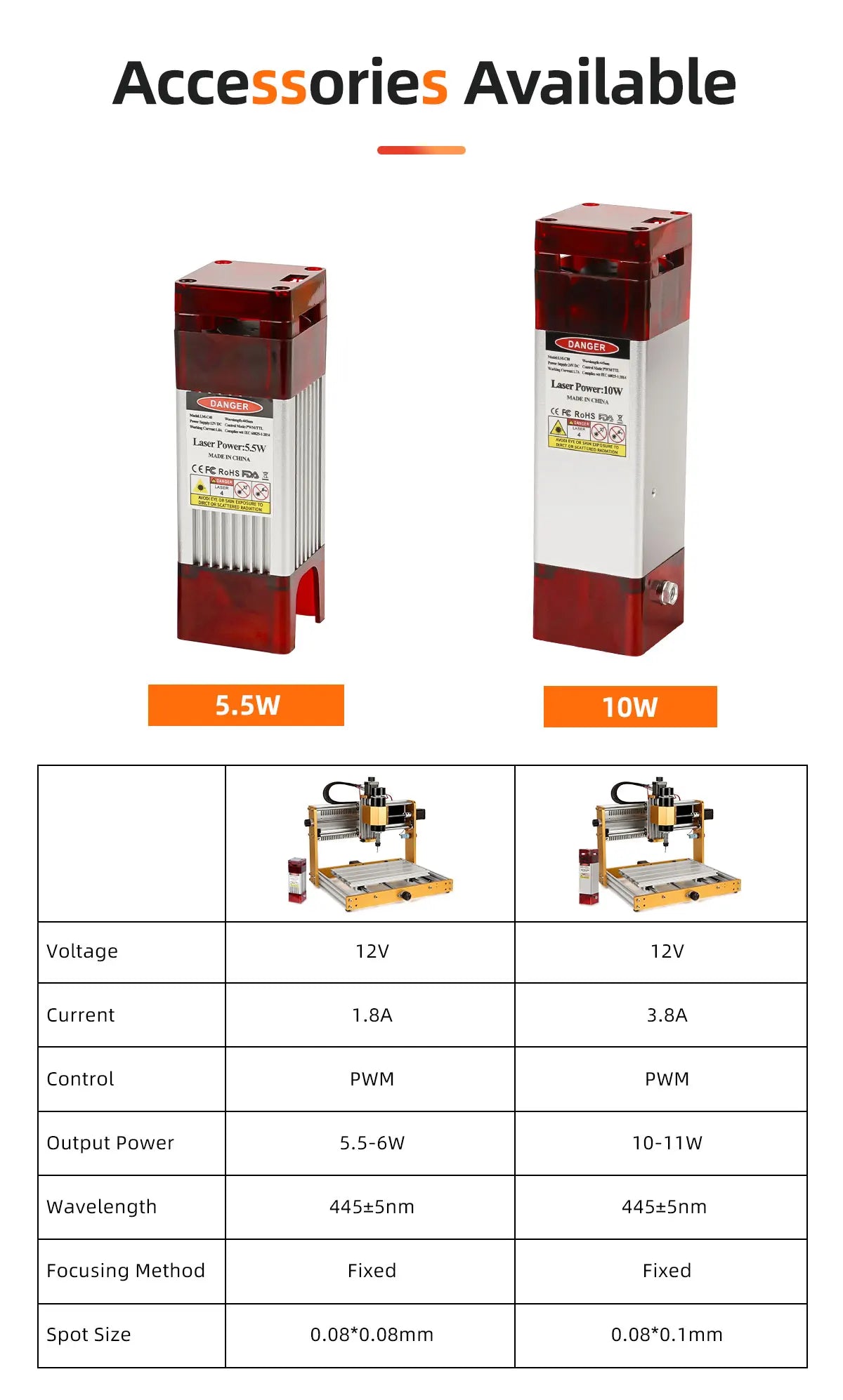

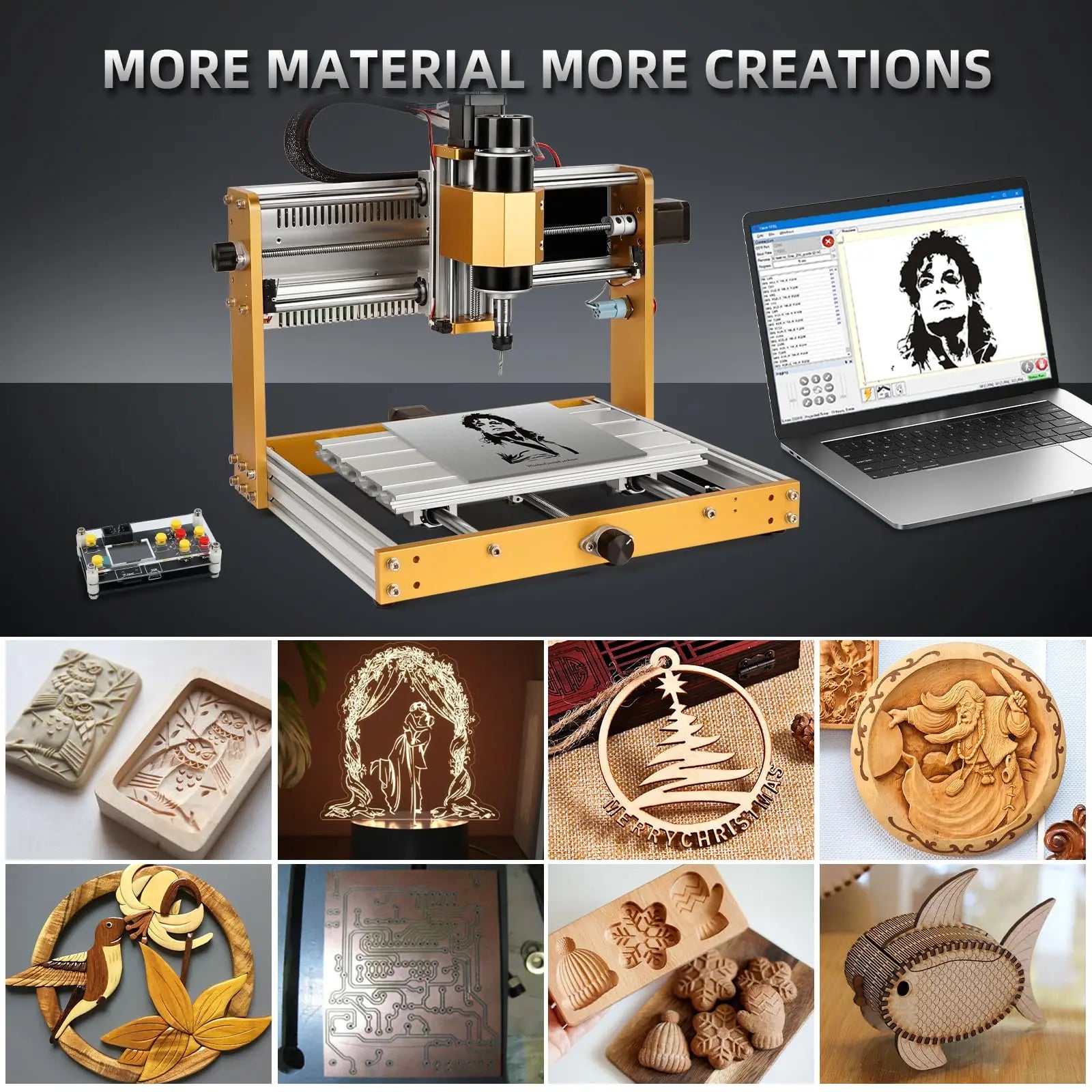

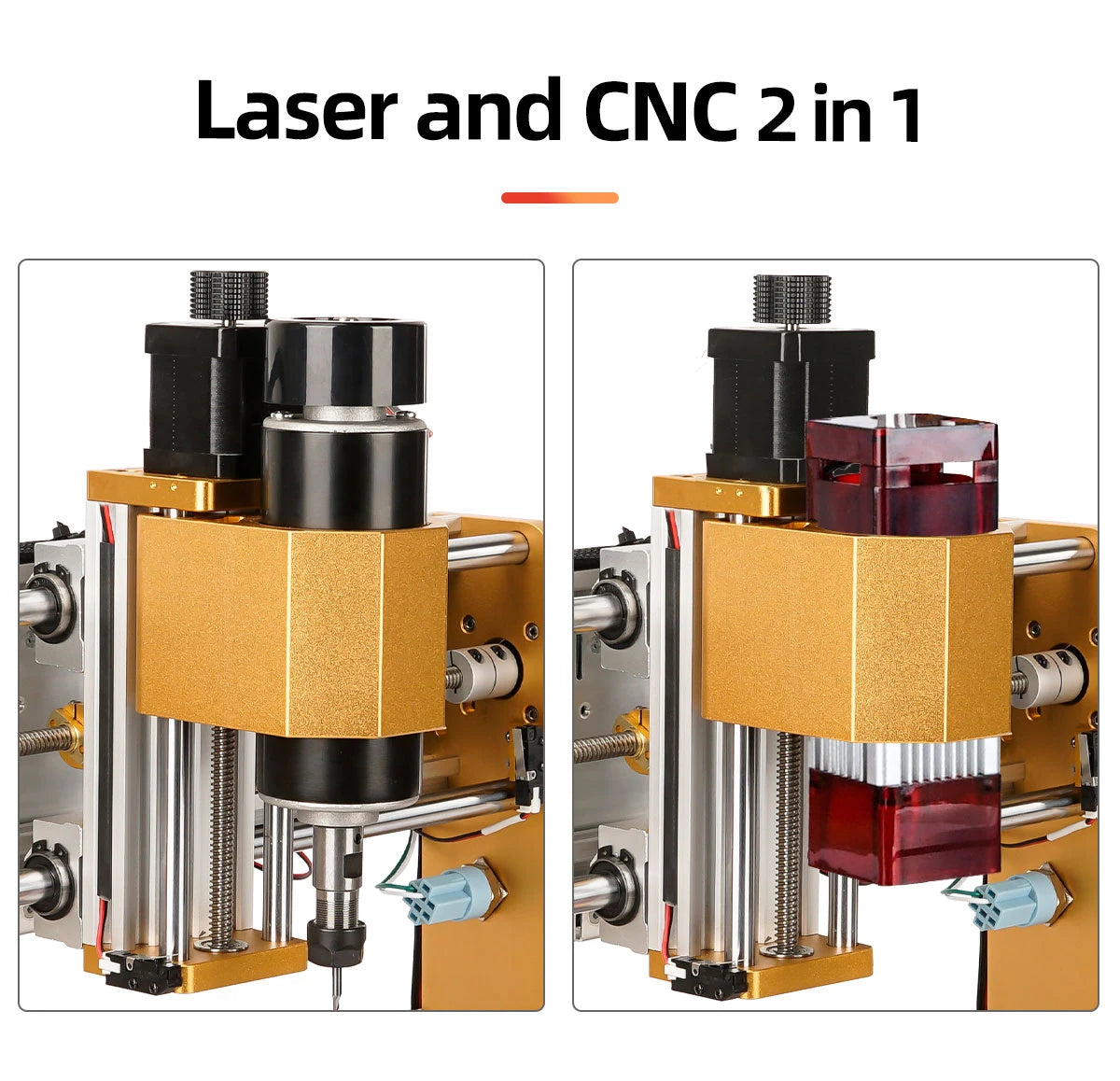

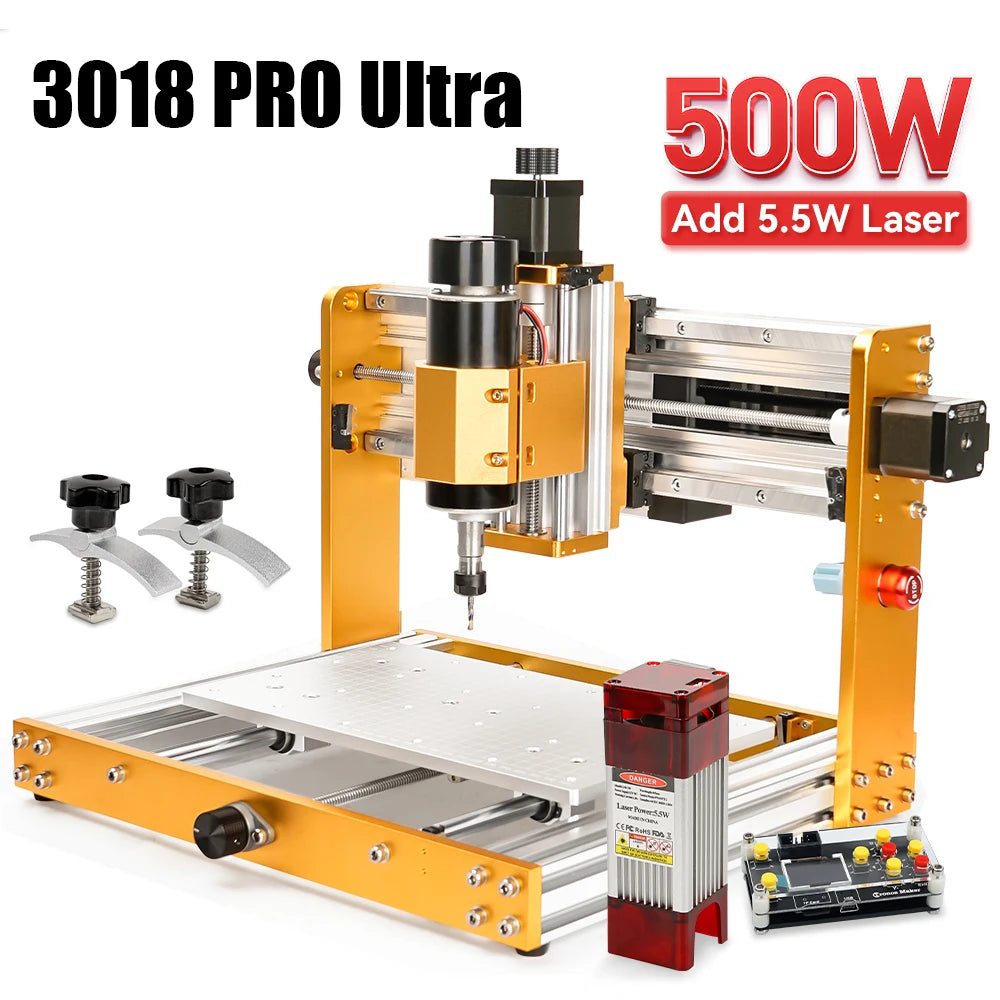

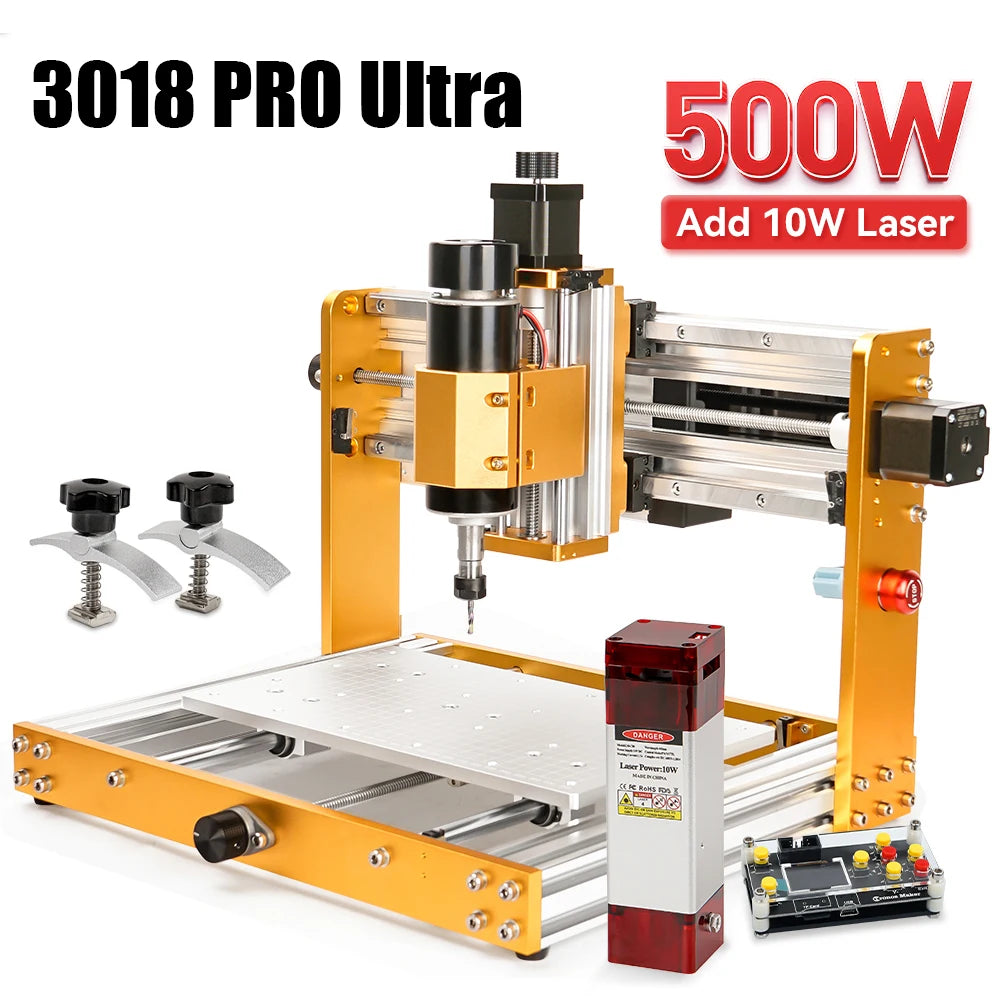

● Two-in-One CNC Machine: Switch between spindle and laser modes for a wide range of tasks, from cutting and engraving to marking and etching, maximizing productivity and efficiency.

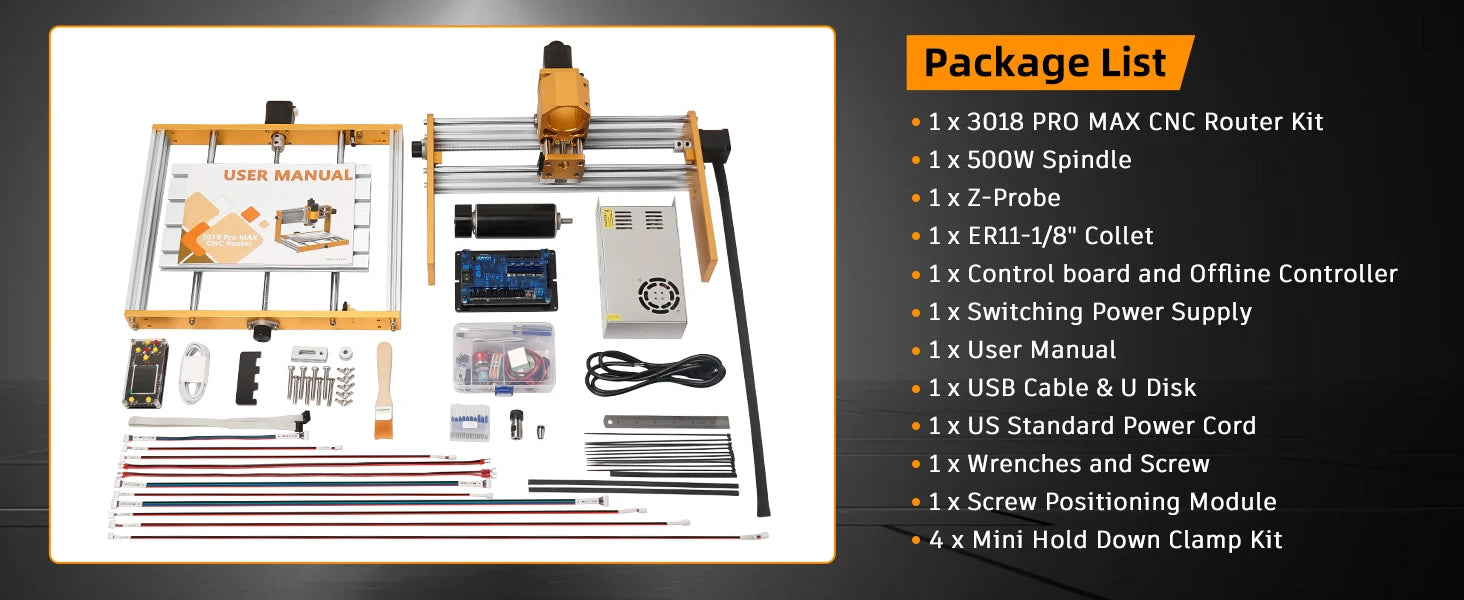

Additional Instructions: Installation and wiring videos are provided. The package includes a 4G USB flash drive with pre-installed software.

▼▼▼

▼▼

▼

New Upgrade Features

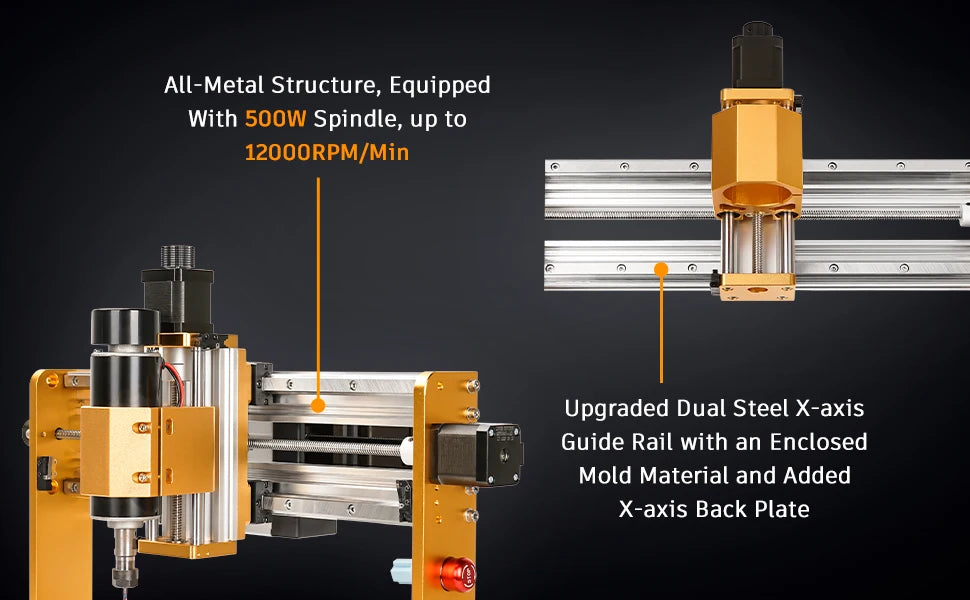

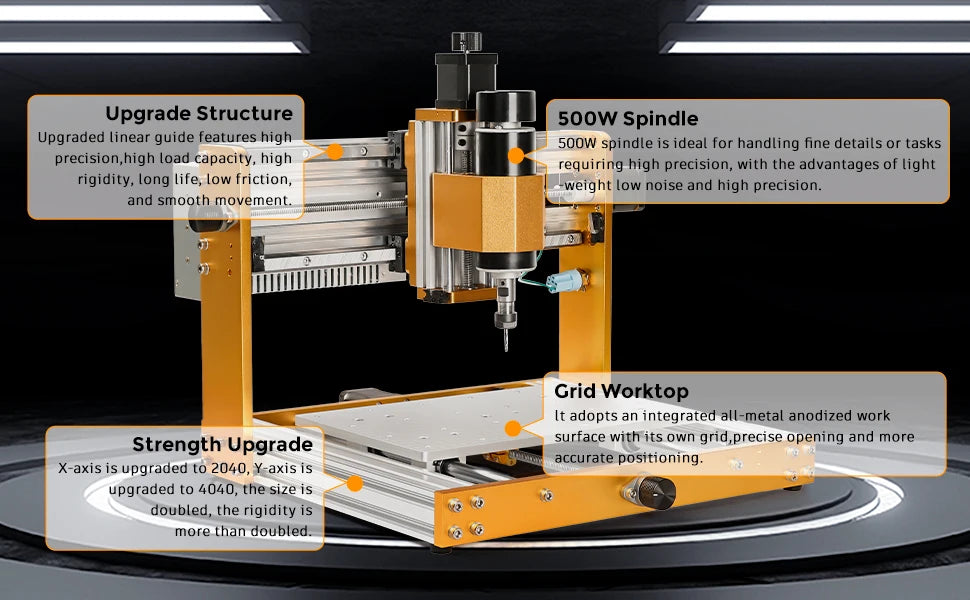

● Enhanced Z-Axis & Spindle: Upgraded to an 80mm Z-axis and 500W spindle with HGH15 linear guide, making metal engraving easier for materials like brass, copper, and 6061 aluminum.

● High Precision: Improved 2040 X-axis and 4040 Y-axis profiles enhance accuracy and processing strength, solving common Z-axis stability issues.

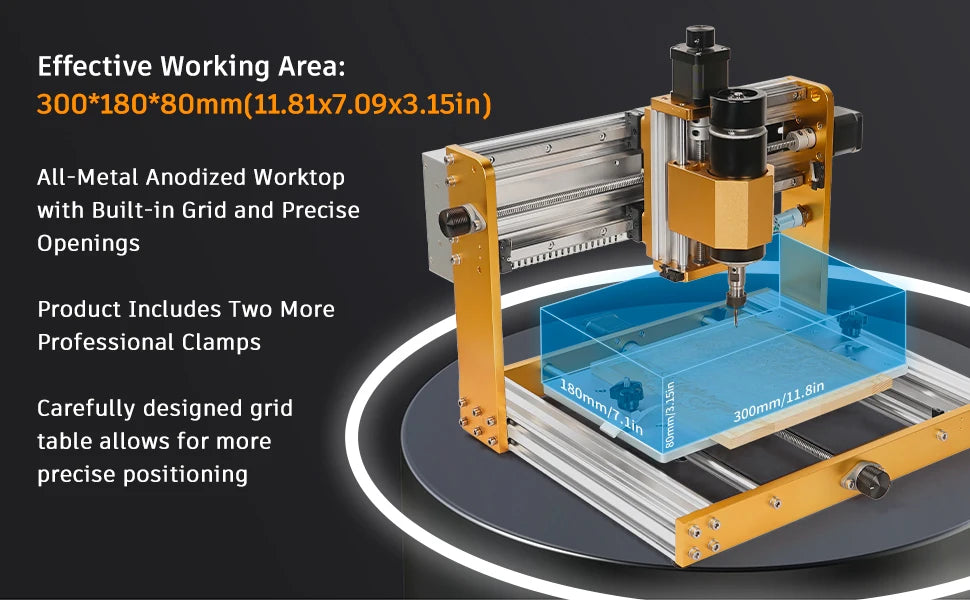

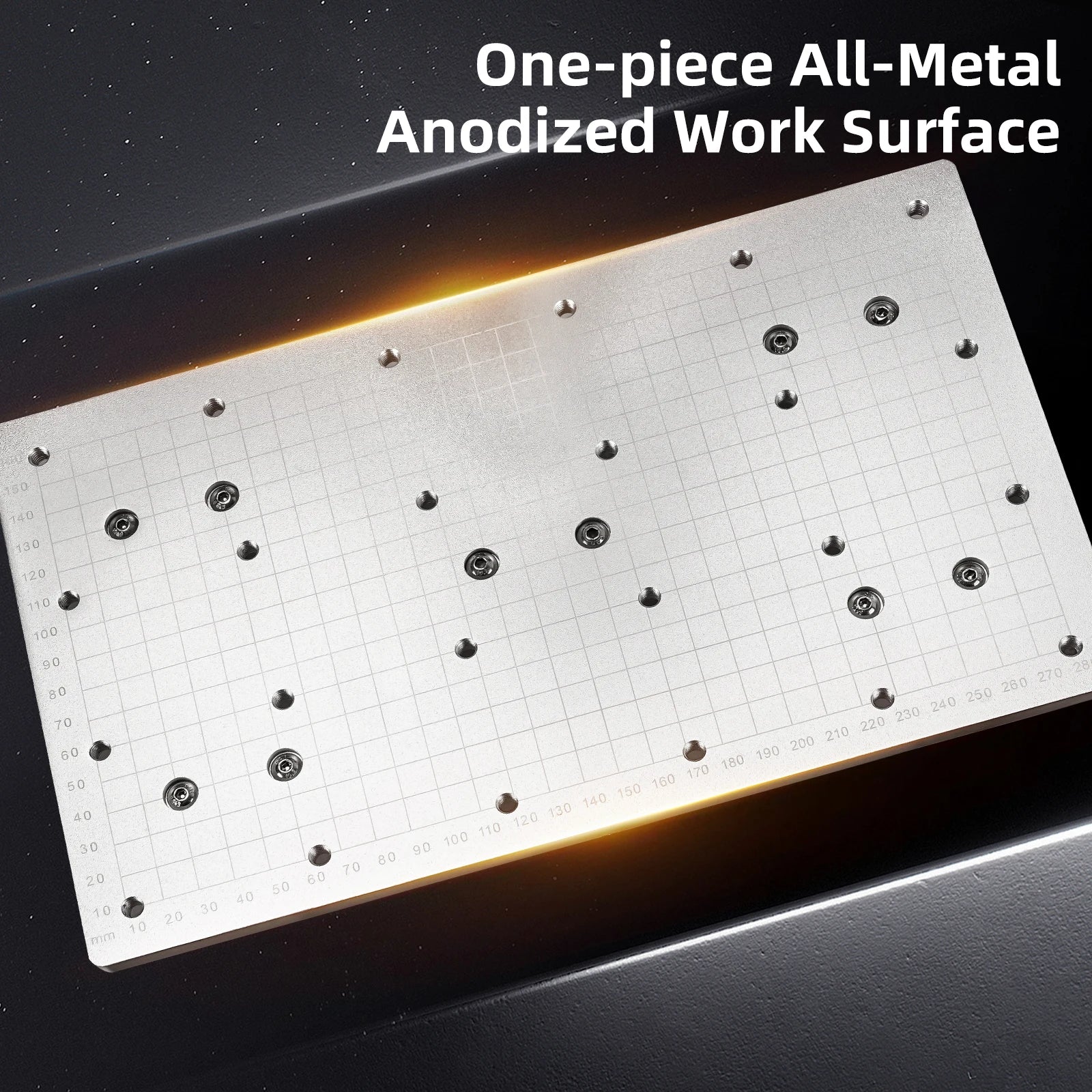

● Scale Grid Aluminum Plate: One-piece milled aluminum design ensures flatness and strength, with an integrated measuring scale for easy positioning. Includes a sturdy two-piece T rail mini bracket clamp set.

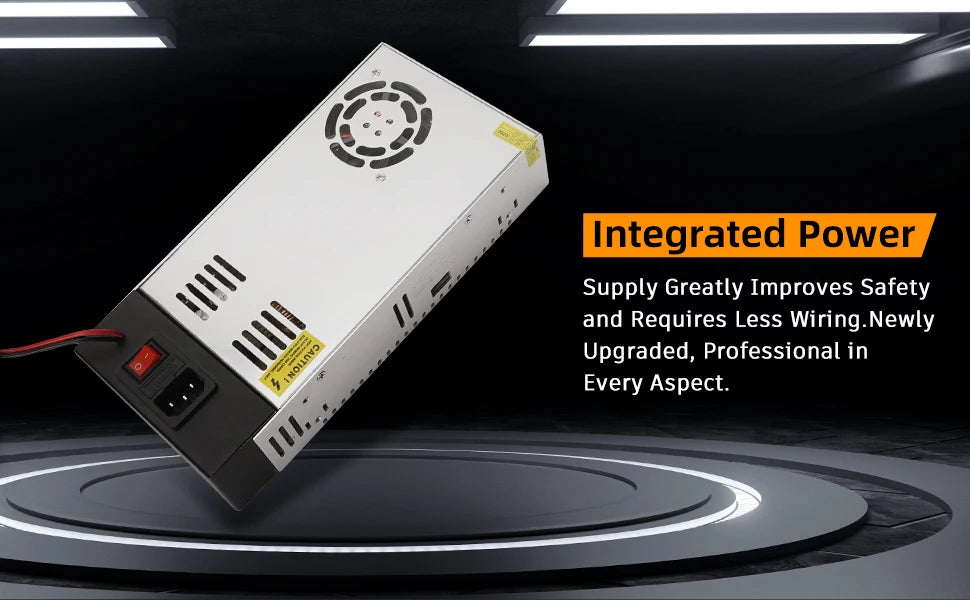

● Integrated Power Supply: Built-in power supply reduces wiring time and improves safety, enhancing overall professionalism.

● Easy Assembly & Support: Pre-assembled parts and clear cable management make setup simple. Mounting videos and manuals are included, with support available within 24 hours.

Auxiliary Instructions: Installation and wiring videos are on the product link page. Package includes a 4G USB flash drive with pre-installed software.
